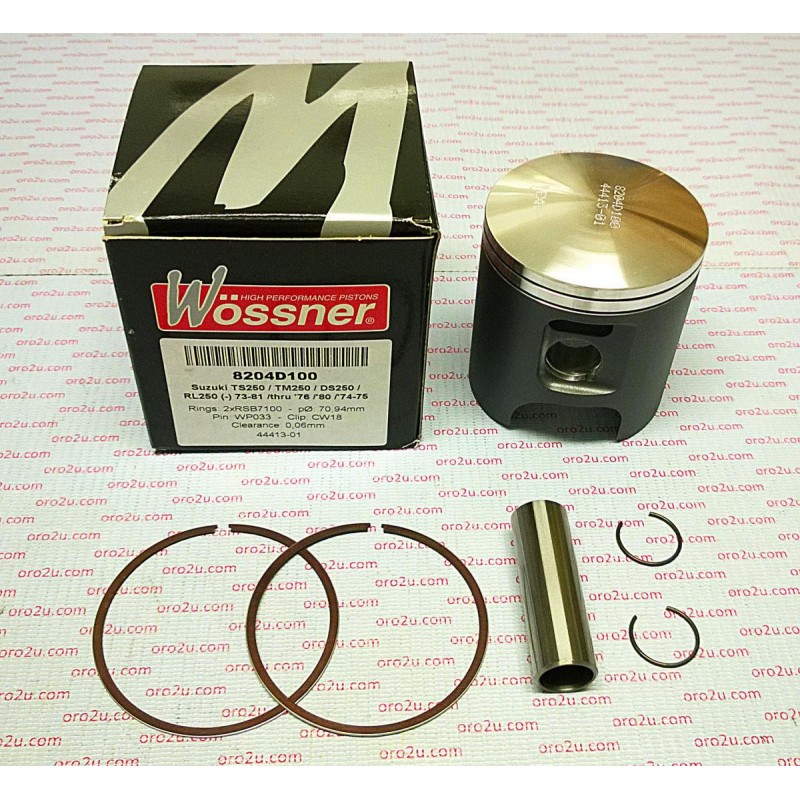

Suzuki TS250 1973-1987 Piston Kit View larger

Suzuki TS250 1973-1987 Piston Kit

New product

  • Wossner forged pistons are superior in strength and design.
  • Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
  • Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
  • Made in Germany

More details

More info

Piston kit 71.50mm Bore 71.44 Wossner 8204D150 (+1.50)

SUZUKI
TS250 1973-1981,,

  • Wossner forged pistons are superior in strength and design.
  • Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
  • Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
  • Made in Germany

Part No. 56-W249.150.WO (oro2u.com)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB7150 x 2

Display (cm3) 249
Hub stroke (mm) 64.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 34.00
Theorectical weight (G)
